Based in the industrial heart of Safat, Kuwait, Nimish Metal has built a strong reputation for supplying high-integrity materials to a diverse range of industries. We take particular pride in our inventory of Titanium Grade 4 Bars and Rods, a product line chosen for its exceptional strength and reliability. Our commitment is to provide local businesses with direct access to this premium-grade titanium, ensuring your critical projects are supported with materials that perform under demanding conditions, backed by our knowledgeable and dependable service.
The composition of Titanium Grade 4 is notable for its high purity, with the highest oxygen and iron content among commercially pure grades. This specific balance gives it a distinct advantage in mechanical performance, offering an excellent strength-to-weight ratio. It boasts a minimum tensile strength of around 550 MPa and impressive proof strength, all while maintaining the superb corrosion resistance titanium is known for. This combination makes it significantly stronger than Grades 1 through 3, yet it remains highly formable.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

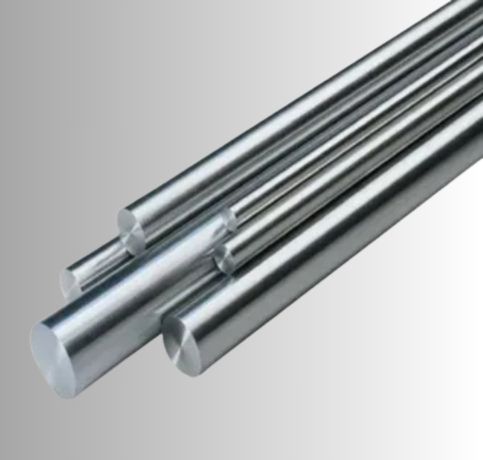

| Round bar size : | Diameter: 3-~800mm |

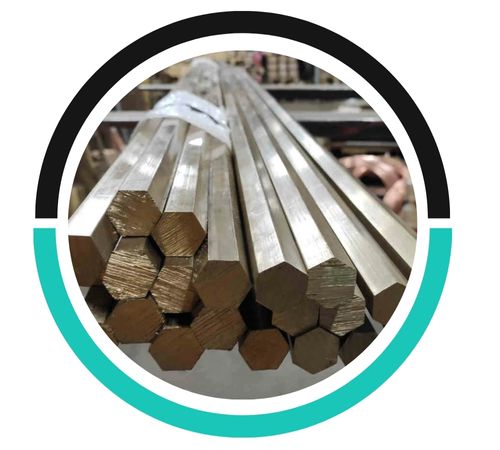

| Hex Bar size : | 2-100mm A/F |

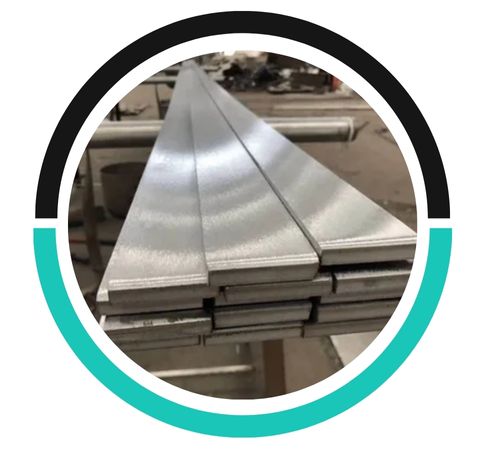

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

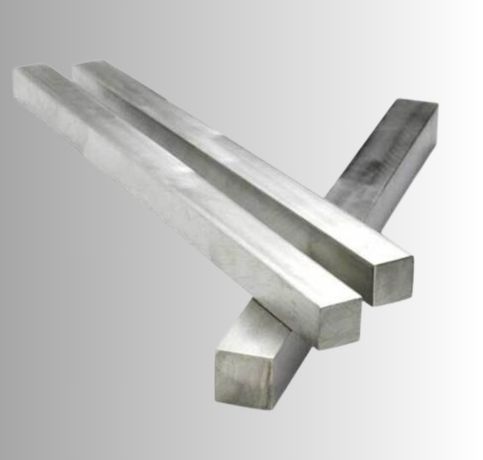

| Square bar size : | 4 to 100mm |

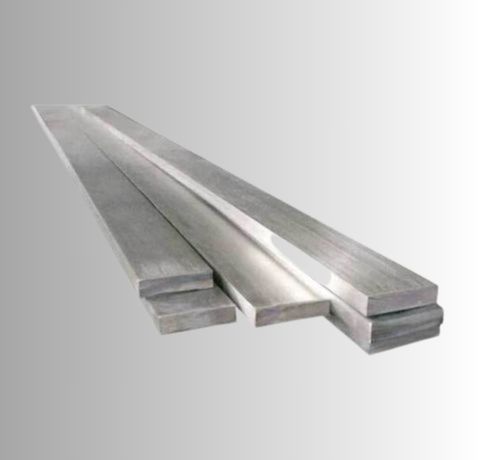

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

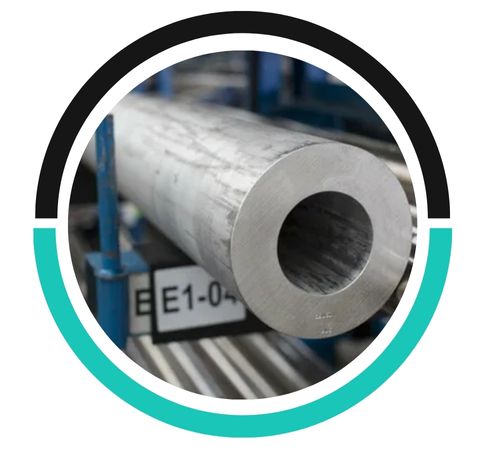

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

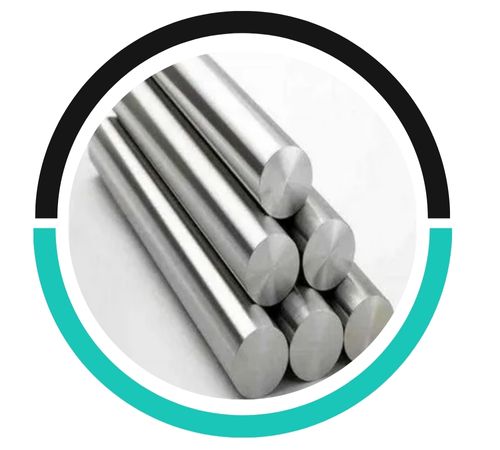

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
The robust nature of Titanium Grade 4 Bars and Rods makes them a go-to choice for demanding environments where failure is not an option. You will frequently find them in critical chemical processing equipment, marine components, and surgical implants like bone screws and plates due to their biocompatibility. They are also essential in aerospace applications for airframe parts and in offshore oil and gas platforms where resisting saltwater corrosion is paramount. Essentially, any industry that requires a material that is both incredibly strong and exceptionally resistant to corrosion relies on this grade.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
