Nimish Metal stands out as a top-notch manufacturer and supplier of high-quality Titanium Grade 3 Bars and Rods in Safat, Kuwait. They’re well-known for their precision-engineered products that adhere to international standards. With a strong emphasis on reliability and customer satisfaction, the company offers materials that are built to thrive in demanding environments where strength and resistance to corrosion are crucial. Their Titanium Grade 3 Bars and Rods find applications in various sectors, including chemical processing, marine, aerospace, and industrial fields. Thanks to their advanced manufacturing techniques and rigorous quality control, Nimish Metal guarantees consistent performance, making them a go-to partner for Kuwait’s growing industrial landscape.
The Titanium Grade 3 Bars and Rods are crafted from commercially pure titanium, featuring a moderate oxygen content of around 0.35%. This composition enhances strength while still allowing for good ductility. They also contain small, controlled amounts of iron, carbon, nitrogen, and hydrogen to ensure structural integrity. On the mechanical side, Titanium Grade 3 boasts higher strength compared to Grades 1 and 2, along with impressive corrosion resistance, moderate formability, and solid weldability. This perfect blend of toughness and durability makes it an excellent choice for applications that demand reliable strength in corrosive or challenging conditions.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

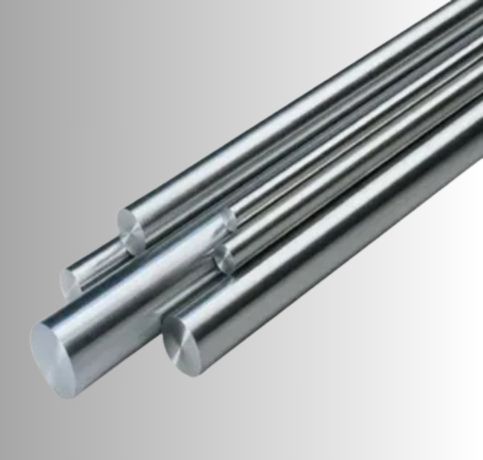

| Round bar size : | Diameter: 3-~800mm |

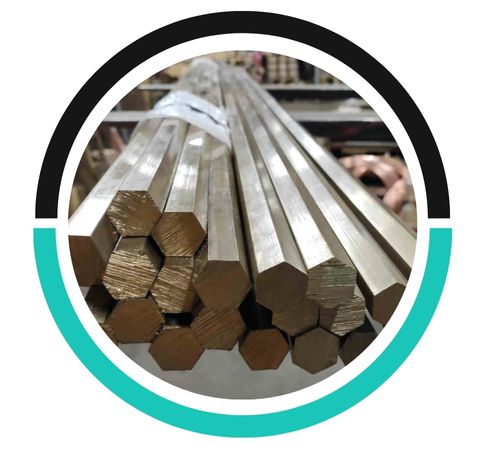

| Hex Bar size : | 2-100mm A/F |

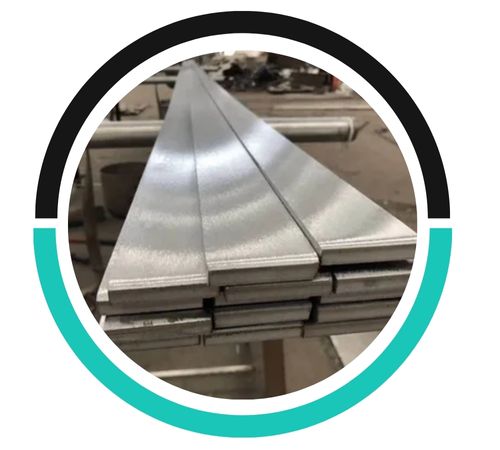

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

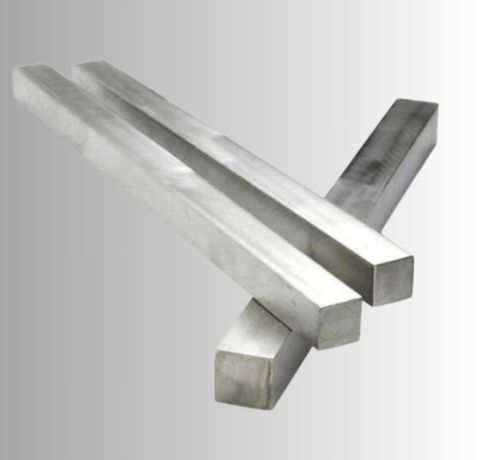

| Square bar size : | 4 to 100mm |

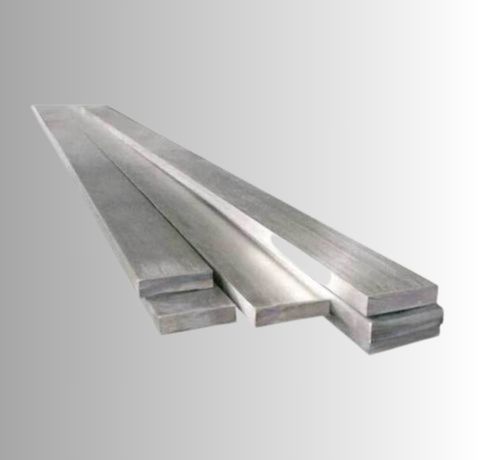

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

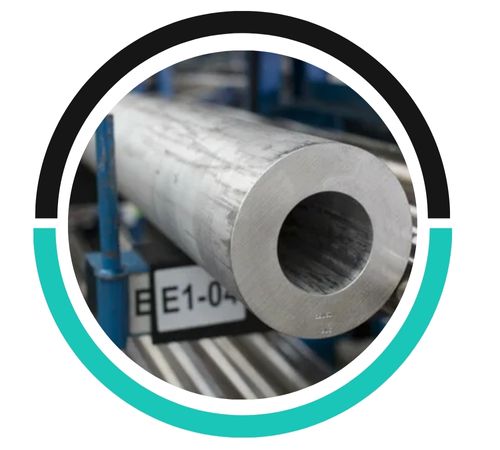

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |

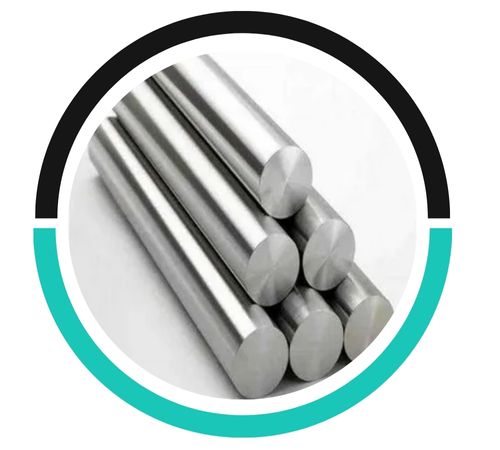

| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
You’ll find Titanium Grade 3 Bars and Rods being utilized across a wide range of industries, thanks to their trustworthy mechanical properties and resistance to corrosion. In the chemical processing sector, they’re perfect for equipment that comes into contact with corrosive acids and chloride environments. The marine industry employs them for shafts, fittings, and components exposed to seawater. In aerospace and defense, they’re used for airframe parts and structural components that require both strength and lightweight characteristics. In the medical field, they’re suitable for various non-implant applications due to their biocompatibility. Additionally, they’re found in heat exchangers, desalination systems, and industrial machinery, providing long-lasting, high-performance service.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
