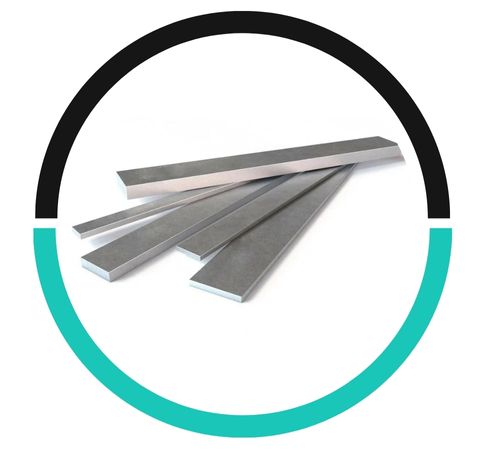

For decades, Nimish Metal in Safat, Kuwait has been a trusted source for high-grade stainless steel, and our Stainless Steel 316L Flat Bar is a prime example of our commitment. This low-carbon variant of 316 is specifically chosen for projects where exceptional corrosion resistance is non-negotiable. We ensure our flat bars offer consistent quality and precise dimensions, making them a reliable and durable choice for Kuwait’s demanding industrial and architectural environments, from coastal constructions to complex manufacturing needs.
The strength of 316L comes from its composition, which includes chromium, nickel, and a significant addition of molybdenum, all working together to fight off corrosion. Its “L” designation means it has a very low carbon content, which prevents harmful carbide precipitation during welding. This results in a material that is not only highly resistant to pitting and crevice corrosion but also maintains excellent toughness and good mechanical strength, even in challenging conditions, making it a dependable engineering material.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”
finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316L flat bars primarily consist of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, with a maximum carbon content of 0.03%. This composition enhances corrosion resistance, especially in chloride-rich environments, making it ideal for demanding applications.
Stainless Steel 316L flat bars are commonly used in industries such as chemical processing, marine, food processing, pharmaceuticals, and petrochemicals. Their high corrosion resistance makes them ideal for applications exposed to aggressive chemicals, saltwater, and high-temperature environments.
The low carbon content in 316L stainless steel reduces carbide precipitation during welding, improving its resistance to intergranular corrosion. This enhances its overall corrosion resistance, particularly in chloride environments, and makes it suitable for applications requiring high strength and durability.
The versatility of the 316L flat bar is truly remarkable. You’ll find it forming the sturdy framework for handrails and architectural trim in buildings along the Arabian Gulf, where salt air is a constant challenge. It’s equally essential in fabricating tanks, platforms, and structural components for the food processing, pharmaceutical, and chemical industries, where hygiene and corrosion resistance are paramount. Its weldability and strength also make it a favorite for custom fabrications, machinery parts, and any application demanding a combination of durability and a clean, professional finish.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
