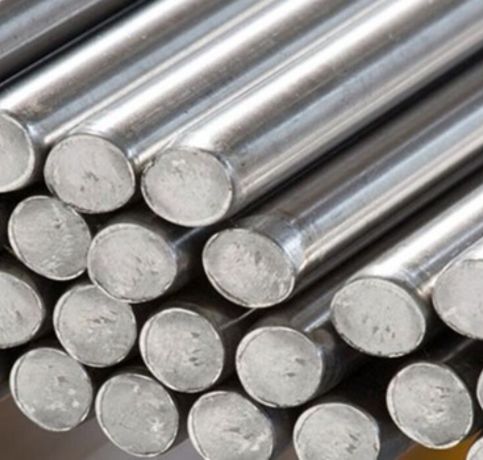

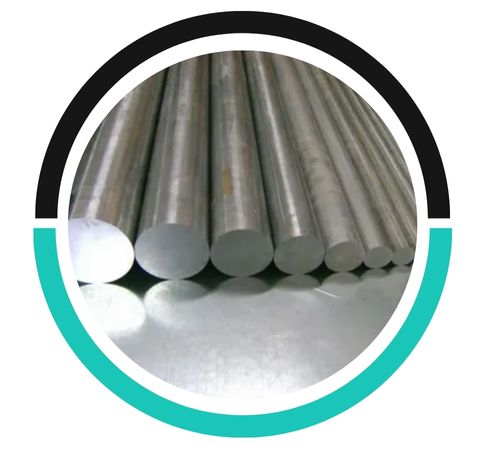

Nimish Metal, a prominent manufacturer and supplier located in Safat, Kuwait, specializes in top-notch High Speed Steel M35 Bars designed for outstanding cutting performance and durability. Renowned for their unwavering quality and precision, the company offers M35 bars that adhere to rigorous industrial standards and meet the demands of various applications. Their dedication to reliability, cutting-edge processing methods, and a customer-centric approach has established Nimish Metal as a go-to source for HSS M35 Bars in Kuwait and beyond. Clients trust their expertise to provide materials that deliver exceptional hardness, wear resistance, and long-lasting operational efficiency.
High Speed Steel M35 Bars find extensive use in industries that demand high-performance cutting and machining tools. They’re perfect for making drills, milling cutters, taps, saw blades, reamers, and other precision cutting instruments. Thanks to their excellent hot hardness and wear resistance, M35 bars excel in high-speed machining, metalworking, and heavy-duty industrial tasks. They’re also utilized in the automotive, aerospace, and tool-making industries, where a long tool life and sustained cutting efficiency are essential. Their reliability in high-temperature environments makes them a great fit for demanding and continuous production settings.
| ASTM A600 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| M35 | 0.82 | 0.95 | 0.15 | 0.40 | 0.03 | 0.03 | 0.20 | 0.45 | 3.80 | 4.50 | 1.75 | 2.15 | 4.75 | 5.25 | 5.50 | 6.50 | 4.60 | 5.00 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| 1.3243/HS6-5-2-5 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| JIS G4403 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| SKH55 | 0.87 | 0.95 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 1.70 | 2.10 | 4.70 | 5.20 | 5.90 | 6.70 | 4.50 | 5.00 |
| Temperature °C / °F | |||||||
| 20 / 70 | 400 / 750 | 600 / 1110 | |||||
| Density | Kg/m³ lbs/in³ | 8150 .294 | 8050 .290 | 7990 .228 | |||
| Modulus of Elasticity | kN/mm³² psi | 230 34 · 10 6 | 205 31 · 10 6 | 184 27 · 10 6 | |||
| Coefficient of Thermanl expansion from 20°C / 70°F | per °C per °F | – | 11.6 · 10-6 6.4 · 10-6 | 11.9 · 10-6 6.6 · 10-6 | |||
| Thermal Conductivity | W/m °C Btu/sq. ft. h °F/in. | 24 166 | 28 194 | 27 187 | |||
| Specific Heat | J/kg °C Btu/lb °F | 420 0.10 | 510 0.12 | 600 0.14 | |||
| Country | USA | German | Japan |
| Standard | ASTM A600 | DIN EN ISO 4957 | JIS G4403 |
| Grades | M35 | 1.3243/HS6-5-2-5 | SKH55 |
| Thermal properties | Metric | Imperial |
| CTE, linear (@21 – 399°C / 69.8 – 750°F) | 11.4 μm/m°C | 6.33 μin/in°F |
| CTE, linear (@21 – 593°C /69.8 – 1100°F) | 11.5 μm/m°C | 6.39 μin/in°F |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Yes, High-Speed Steel M35 can be welded, but it requires careful control of heat and preheating. Post-weld heat treatment is often necessary to restore its hardness and performance.
Yes, High-Speed Steel M35 bars can be customized in terms of dimensions, shape, and surface finish. Machining and heat treatment processes can also be tailored to meet specific performance requirements.
High Speed Steel M35 Bars find extensive use in industries that demand high-performance cutting and machining tools. They’re perfect for making drills, milling cutters, taps, saw blades, reamers, and other precision cutting instruments. Thanks to their excellent hot hardness and wear resistance, M35 bars excel in high-speed machining, metalworking, and heavy-duty industrial tasks. They’re also utilized in the automotive, aerospace, and tool-making industries, where a long tool life and sustained cutting efficiency are essential. Their reliability in high-temperature environments makes them a great fit for demanding and continuous production settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
