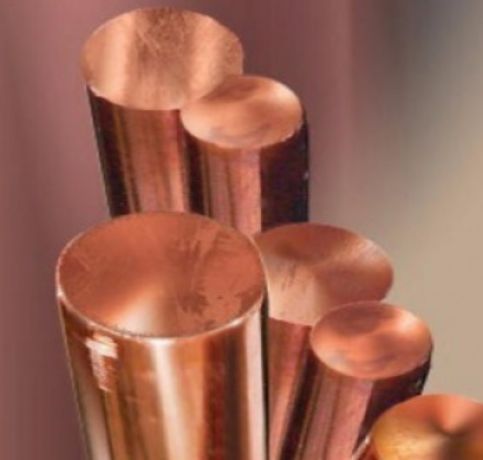

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a strong reputation for supplying high-quality metals, and at the forefront of our offerings are Copper C10500 Bars and Rods. We understand that the integrity of your projects depends on the purity of your materials. That’s why we provide premium C10500, a metal chosen for its exceptional electrical conductivity and reliability, ensuring your operations in Kuwait and beyond are built on a foundation of proven excellence and consistent performance.
To get technical, Copper C10500 is essentially pure, unalloyed copper, consisting of at least 99.95% copper content, including silver. This high purity gives it outstanding electrical conductivity, rated at 101% IACS. Mechanically, it offers a typical tensile strength of 35-45 ksi and yield strength around 30 ksi. It can be easily hardened through cold working to achieve higher strength levels. The material maintains excellent formability and can be annealed to a soft state, though it work-hardens during fabrication.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

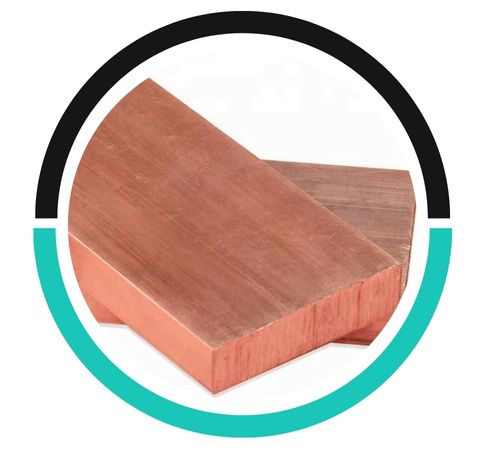

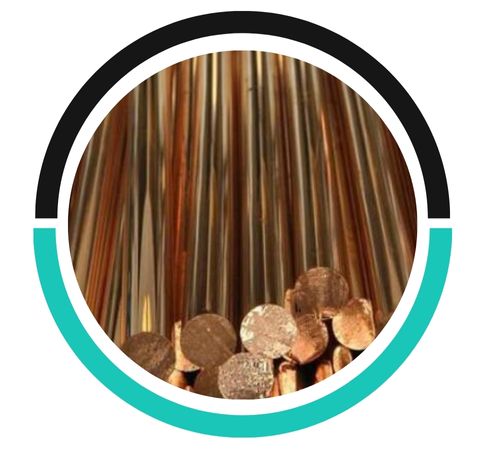

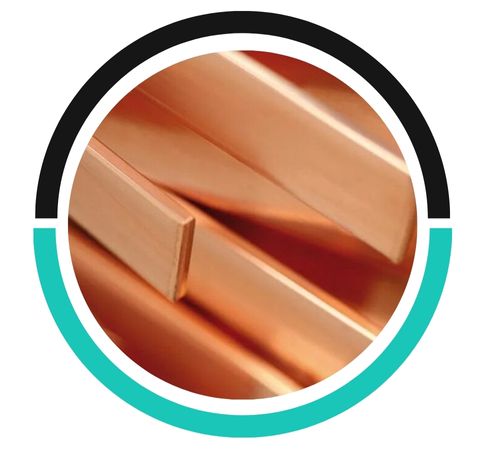

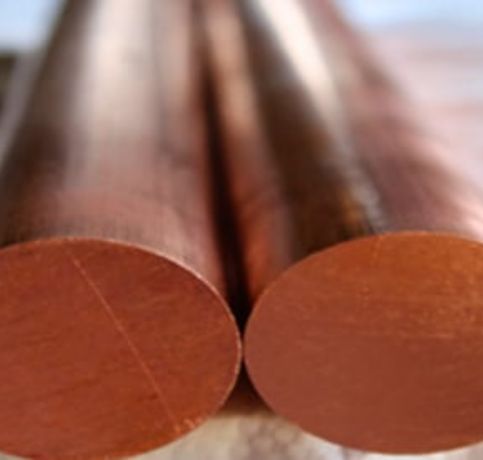

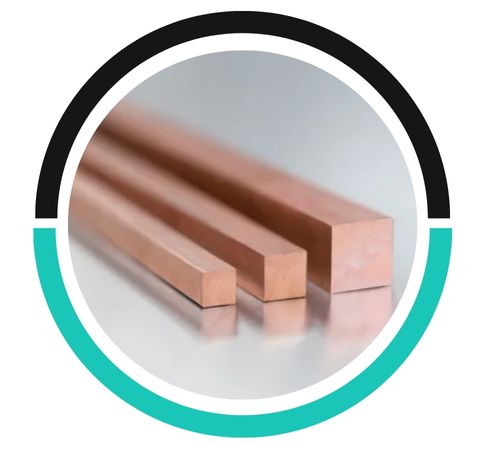

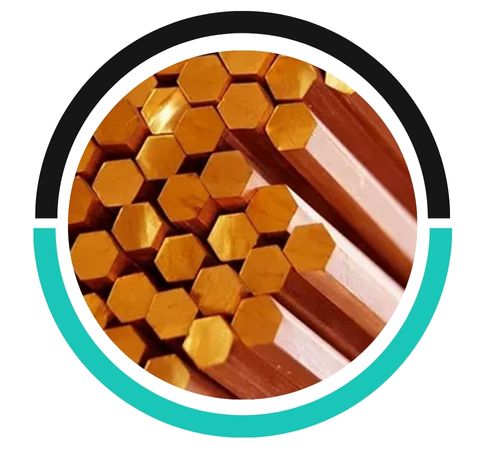

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10500 |
| Elements | |||
|---|---|---|---|
| Cu(1,2,3) | Ag(4) | O | |
| (1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS. (2) Cu value includes Ag. (3) Cu is determined by the difference between the impurity total and 100%. (4) Ag 0.034% min is the equivelant of, Ag 10 Troy Oz min. | |||
| Min (%) | 99.95 | 0.034 | |
| Max (%) | 0.001 | ||
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Section Size (in) | Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | |||||||||||
| Rod | As Hot Rolled | M20 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | |||
| Hard | H04 | 55 Typ | 50 Typ | 10 Typ | 60 Typ | 94 Typ | 29 Typ | 0.25 | 40 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 2 | 16 | ||
| Hard | H04 | 48 Typ | 44 Typ | 16 Typ | 47 Typ | 87 Typ | 27 Typ | 1 | 35 | ||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | ||||
When selecting Copper C10500 Bars and Rods, consider factors like conductivity, corrosion resistance, machinability, application requirements, and environmental conditions to ensure optimal performance and durability.
Yes, Copper C10500 Bars and Rods can be used in cryogenic applications due to their excellent thermal conductivity and mechanical stability at extremely low temperatures.
Yes, Copper C10500 Bars and Rods require regular inspection to ensure their performance, detect wear or damage, and maintain their structural integrity in demanding applications.

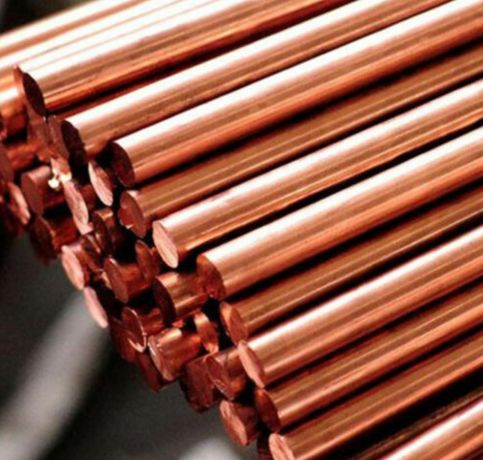

Known for their superior electrical and thermal properties, these copper bars and rods are staples in many serious industries. They are extensively used for manufacturing bus bars, waveguide components, and electrical contacts. Their high conductivity makes them perfect for heat exchangers, plumbing components, and cooling coils. Essentially, wherever a dependable flow of electricity or heat is non-negotiable, you’ll find C10500 hard at work, forming the crucial backbone of efficient and safe operations.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
