Copper C10300 Bars/Rods

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a reputation as a trusted source for high-grade metals. We take particular pride in our extensive inventory of Copper C10300 Bars and Rods, known for their exceptional quality and reliability. Whether your project demands round bars, squares, or hexagonal rods, we ensure every piece meets the highest industry standards, backed by our commitment to timely delivery and outstanding customer service. When you need performance you can count on, our team is here to provide the right materials for the job.

C10300 Copper Round Bars Kuwait, Copper C10300 Hexagonal Bars Supplier in Kuwait, C10300 Copper Bus Bars Exporter in Kuwait, Copper C10300 Hex Bars Stockist in Safat, C10300 Copper Alloy Rectangular Bars Supplier in Kuwait,Copper C10300 Square Bars Distributor in Kuwait, 3/16" Copper C10300 Rod Stockist Salmiya, C10300 3/8" Copper Alloy Round Rod Price in Salmiya, Copper Flat Bars Kuwait

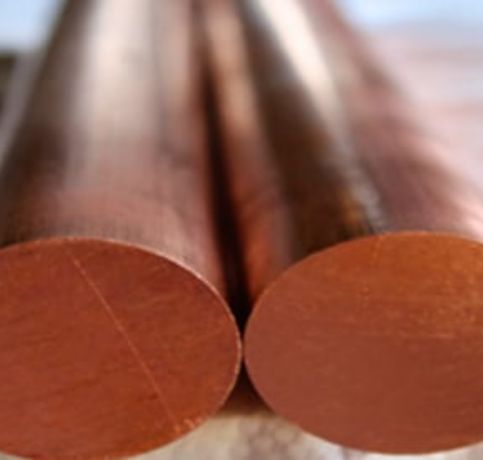

Copper C10300 Forging Rod

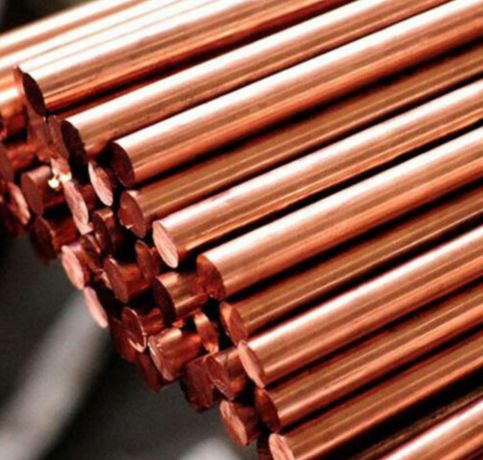

Copper C10300 Bus Bars

C10300 Copper Bright Rods

What is Copper C10300 Bars and Rods

In terms of its makeup, Copper C10300, often called Oxygen-Free Electronic (OFE) copper, is defined by its extreme purity of 99.95% copper. This high copper content gives it excellent electrical conductivity, ranking at or above 101% IACS. Mechanically, it offers a yield strength around 69 MPa and a tensile strength of about 241 MPa. It’s a relatively soft and ductile material, which makes it easy to work with, and it can be hardened through cold working for applications needing a bit more strength.

C10300 Copper Forging Rod Price List in Safat, Copper C10300 Threaded Bars Supplier in Jahra, Copper C10300 Copper Hexagonal Bars Exporter in Hawalli, C10300 Pure Copper Rods Exporter in Kuwait, C10300 Copper Round Bars Manufacturer in Salmiya, Copper C10300 Round Bars Distributor in Kuwait, C10300 Copper Half Round Bars Dealer in Hawalli, Stockist of C10300 Copper Forged Bar in Jahra, 20mm Copper C10300 Round Bar Supplier in Kuwait, C10300 Oxygen Free Copper Rectangle Rods Exporter in Al Ahmadi

Copper C10300 Bar/Rods Specifications

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10300

Copper C10300 Bar and Rods Thermal Properties

Treatment	Maximum*	Minimum*
* Temperature is measured in Fahrenheit.
Hot Working Temperature	1600	1400
Annealing	1200	700

Copper Alloy C10300 Rods Equivalent

Alloy Designation
DIN CEN/TS 13388	CW021A
EN	Cu-HCP
UNS	C10300

You Need Our Support, to Have Any Projects?

Copper C10300 Bars & Rods Physical Properties

Typical values in annealed temper at 20 °C
Thermal expansion coefficient	20 .. 300 °C	16.9	10-6/K
Density		8.92 g/cm³
Thermal conductivity		385	W/(m·K)
Modulus of elasticity	GPa	130	GPa
Specific heat capacity		0.385 J/(g·K)
Electrical conductivity	IACS	98 %
Electrical conductivity	MS/m	57	MS/m
Thermal coefficient of electrical resistance	(0 .. 100 °C)	3.7	10-3/K

Test Certificate

Why Nimish Metals?

Packaging

Copper C10300 Bar/Rods Mechanical Properties

Tensile Strength Rm	Hardness HV *	Temper	Yield Strength Minimum Rp0.2	Elongation Minimum A50mm	Bending 90° gw bw rel. Bending Radius R/T
Mechanical Properties (EN 1652)
MPa	HV		MPa %		Strip Thickness ≤ 0.50mm
≥ 360	≥ 110	R360	320	2	0	0.5
240 .. 300	65 .. 95	R240	180	8	0	0
220 .. 260	40 .. 65	R220	≤ 140 *	33	0	0
290 .. 360	90 .. 110	R290	250	4	0	0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10300 Bar/Rods Types

C10300 Wrought Copper Alloy Rod & Bar Size Chart, C10300 Copper Round Rods Price in Salmiya, Copper C10300 Round Bars Supplier in Kuwait, C10300 Copper Bus Bar Stockist in Jahra, Copper C10300 Half Round Bar Supplier in Safat, C10300 Copper Forged Bar Dealer in Hawalli, 20mm Copper C10300 Round Bar Manufacturer in Hawalli, C10300 Copper Round Rods Supplier in Al Ahmadi

Frequently Asked Questions (FAQ)

How Do I Select The Right Copper C10300 Bars and Rods For My Application?

To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.

Are Copper C10300 Bars and Rods are Recyclable?

Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.

Can Copper C10300 Bars and Rods Be Used For Potable Water Applications?

Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.

Copper C10300 Bar/Rods Uses

The uses for these bars and rods are incredibly diverse, making them a cornerstone in critical industries. You will often find them machined into intricate components within electrical wiring, transformers, and bus bars where maximum conductivity is non-negotiable. Their superior thermal properties also make them a natural choice for heat exchangers, cooling coils, and intricate plumbing systems. From high-tech electronics to heavy industrial machinery, C10300 is the go-to material for projects where efficiency, reliability, and pure performance are the most important factors.
