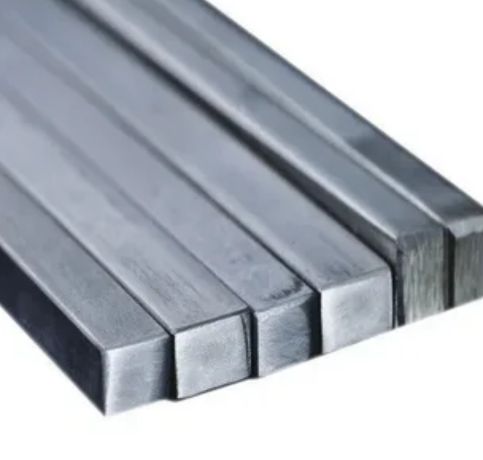

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a sterling reputation as a trusted supplier and manufacturer of high-grade metals. We take particular pride in offering Stainless Steel 416 Square Bars and Rods, a robust solution for demanding applications. Our commitment lies in delivering superior quality materials that meet the precise standards required by Kuwait’s diverse industries, ensuring reliability and performance in every piece we supply.
This martensitic stainless steel is known for its excellent strength and hardness. The material is composed of chromium, a key ingredient that provides corrosion resistance, with additions that enhance its ability to be machined to a very smooth finish. It offers good mechanical properties and can be hardened through heat treatment, making it stronger but less ductile than many similar stainless steels.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | – | X12CrS13 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 416 square bars are susceptible to galvanic corrosion when in contact with more noble metals, such as copper or brass, in the presence of an electrolyte. Proper insulation and material selection can help mitigate this risk.
Yes, we provide 416 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
Stainless Steel 416 square rods are available in various sizes, typically ranging from 1/4" to 6" in width. They come in finishes like cold-finished, hot-rolled, or polished, depending on the application requirements.
You will often find these bars machined into essential components like valves, pump parts, and fasteners. They are the top choice for manufacturing gears and shafts that endure moderate pressure, as well as for cutlery and surgical instruments requiring a sharp edge. Their durability makes them suitable for use in both everyday consumer goods and critical industrial machinery, serving a wide array of sectors from automotive to medical.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
