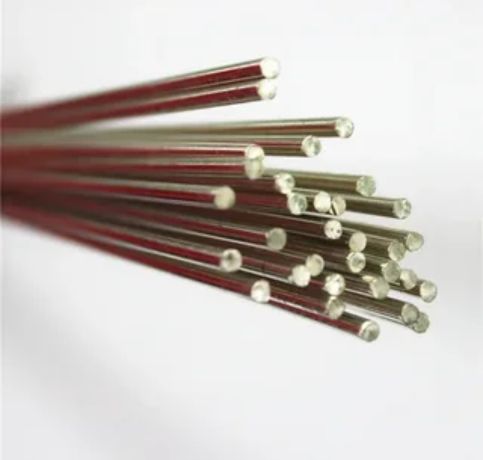

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a solid reputation as a trusted manufacturer and supplier of high-quality welding products. Among our specialties are the premium Silver Brazing Rods, crafted for those who refuse to compromise on performance. We understand that a strong join is the backbone of any project, which is why our rods are designed to deliver exceptional results, time after time, supporting the growth and durability of businesses across the region.
Our silver brazing rods are engineered with precision, typically composed of high-purity silver, copper, and other trace elements that enhance flow and strength. When applied, they form joints with impressive mechanical integrity, boasting excellent tensile strength and a resilience that stands up to considerable stress. These rods are known for their ability to create durable, corrosion-resistant connections that maintain their properties even under fluctuating temperatures, ensuring a long-lasting bond between similar and dissimilar metals.
Silver Grade of Brazing Alloy | Nominal Composition % | Melting Range | International Standards | |||||
Ag | Cu | Zn | Cd | Others | °C |  DIN:8513 | AWS:A5.8 | |
| SILVER 67Cd | 67 | 11 | 12 | 10 | – | 635-720 | L-Ag67Cd | – |
| Used for brazing of silver goods made of silver alloys. | ||||||||
| SILVER 50Cd | 50 | 15.5 | 16.5 | 18 | – | 620-640 | L-Ag50Cd | BAg-1a |
| One of the lowest melting point Silver Brazing alloys available. It has excellent flow characteristics. The highest joint strength can be obtained with this alloy. Has better resistance to corrosion in chlorine, sulphur and steam environments. | ||||||||
| SILVER 45Cd | 45 | 15 | 16 | 24 | – | 605-620 | L-Ag45Cd | BAg-1 |
| This has the lowest brazing temperature range of the BAg filler metals. It also flows more freely into narrow clearance capillary joints. Its narrow melting range is suitable for rapid or slow methods of heating. | ||||||||
| SILVER 44Cd | 44 | 27 | 13 | 15 | 1P | 595-660 | – | – |
| Low melting filler metal for brazing electrical contacts and molybdenum or copper-tungsten electrodes. | ||||||||
| SILVER 43Cd | 43 | 16 | 20 | 21 | – | 615-620 | – | – |
| This has the shortest melting range of any silver brazing alloys. This alloy is regarded as the best brazing alloy by manu brazers. It is particularly recommended where a minimum brazing temperature is desirable to preserve the properties of the parent metals. Ideal where joints have a close fitup and will produce neat joints with optimum ductility and strength. | ||||||||
| SILVER 40Cd | 40 | 19 | 21 | 20 | – | 595-630 | L-Ag40Cd | – |
| SILVER 35Cd | 35 | 26 | 21 | 18 | – | 610-700 | L-Ag34Cd | BAg-2 |
| A free flowing general purpose brazing alloy. Its broader melting range is helpful where clearances are wide or are not uniform. Unless heating is rapid, care must be taken that the lower melting constituents do not separate out by liquation. | ||||||||
| SILVER 30Cd | 30 | 28 | 21 | 21 | – | 600-690 | L-Ag30Cd | BAg-2 |
| Similar to Silver 40Cd but more economical. | ||||||||
| SILVER 251Cd | 25 | 30 | 27.5 | 17.5 | – | 605-680 | – | BAg-33 |
| Silver 251, 250 & 20Cd have good fillet forming properties with an ability to bridge wide gaps. Their wide melting range limit their applications. Due to their wide melting range they are somewhat more subject to liquation and may require more care during brazing. Therefore, they are not normally recommended for applications with slow heating rates. | ||||||||
| SILVER 250Cd | 25 | 35 | 26 | 14 | – | 605-745 | – | BAg-27 |
| SILVER 20Cd | 20 | 40 | 25 | 15 | – | 605-765 | L-Ag20Cd | – |
| SILVER 12Cd | 12 | 50 | 31 | 7 | – | 620-825 | L-Ag12Cd | – |
| Economical alloy with wide melting range. Like above, preferred for applications having short heating cycles to avoid liquation. Ideal for bridging wider gaps where work pieces are insensitive to heat. | ||||||||
| SILVER 5Cd | 5 | – | – | 7 | – | 335-392 | – | – |
| Used where alloy having higher melting point and better strength than soft solder is required. | ||||||||
| C | Si | Mn | P | S | Cr |
| 95/1.25 | .40 max. | .37 | .045 max | .045 max. | .35 / .45 |
Silver brazing rods generally do not require corrosion protection coatings for most applications. However, in highly corrosive environments, additional coatings or protective measures may be beneficial to prevent degradation.
Silver brazing rods are not designed for welding, as they are intended for brazing. Attempting to weld them can result in poor joint strength and structural integrity.
When installing silver brazing rods, ensure the joint surfaces are clean and properly prepared for effective bonding. Also, control the heating process to avoid overheating or damaging the material.
The beauty of these rods lies in their incredible versatility, making them a go-to solution for a multitude of tasks. They are indispensable in HVAC installations for connecting copper pipes, in plumbing systems for secure and leak-proof joints, and in general fabrication work for assembling everything from automotive parts to intricate metal artwork. Whether you’re a professional technician on a job site or a dedicated hobbyist in a workshop, these silver brazing rods provide the reliability needed for strong, clean, and dependable bonds on copper, brass, and steel projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
