From the heart of Safat, Kuwait, Nimish Metal has built its reputation as a trusted partner for industries demanding unwavering quality. We take pride in our specialization as a dedicated manufacturer and supplier of Monel Bars & Rods. Understanding the critical nature of your projects, we provide materials engineered for resilience, offering superior performance in the most demanding environments where lesser metals would fail. Our commitment is to deliver not just products, but reliable solutions that form the backbone of your most challenging applications.
Monel’s exceptional strength comes from its unique composition, primarily a blend of nickel and copper, which gives it a natural edge. This alloy is renowned for its remarkable mechanical properties, including high tensile strength and excellent corrosion resistance. It maintains its integrity under extreme stress, from high temperatures to corrosive seawater, without succumbing to cracking or degradation. This combination of durability and toughness makes it a preferred material for engineers who cannot afford compromises.

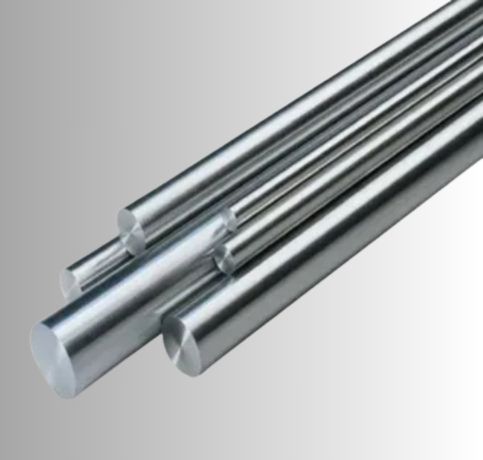

Monel Round Bar Specification : ASTM B164 / A479, ASME SB164 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

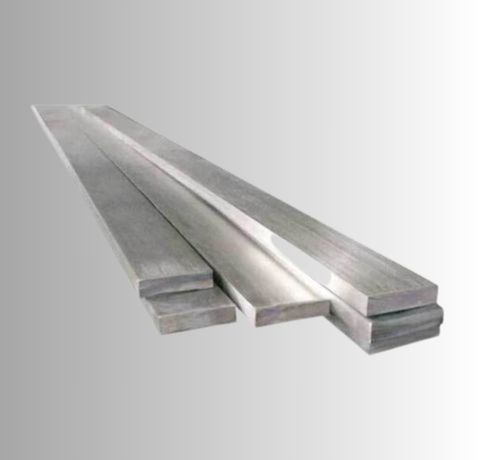

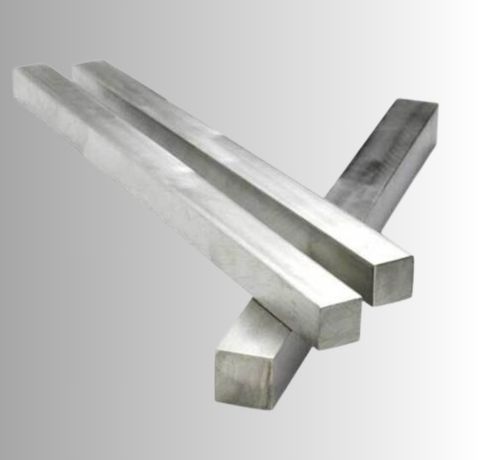

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – |
Yes, Monel alloy bars are highly corrosion-resistant, particularly to seawater, acids, and alkalis. Their exceptional resistance makes them suitable for harsh environments and applications requiring durability.
Yes, Monel rods can be customized in size and length to meet specific application requirements. They are available in various diameters and lengths, ensuring versatility for different industries.
Monel alloy bars and rods perform excellently in high-temperature environments, maintaining strength and resistance to oxidation. They are ideal for applications in extreme heat, such as chemical processing and marine industries.
The real-world uses for Monel Bars & Rods are as diverse as they are critical. You will find them forming the essential components in marine engineering, such as propeller shafts and pump parts, where saltwater is a constant enemy. They are equally vital in chemical processing plants, handling harsh acids, and in oil and gas extraction equipment facing sour service environments. From aerospace fasteners to critical valves and fittings, these rods and bars provide the silent, dependable strength that keeps complex industrial operations running smoothly and safely.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
