Based in the industrial heart of Safat, Kuwait, Nimish Metal has built a strong reputation as a trusted manufacturer and supplier of high-performance materials. We specialize in providing top-quality Incoloy 925 bars and rods, engineered to meet the rigorous demands of challenging environments. Our commitment is to deliver reliable solutions that empower your most critical projects, backed by deep industry knowledge and a focus on customer satisfaction. When you partner with us, you gain access to superior materials and expertise you can count on.
Incoloy 925 achieves its outstanding performance through a carefully balanced composition of nickel, chromium, and iron, enhanced with key additions of molybdenum, copper, and titanium. This specific formulation gives the alloy exceptional mechanical strength and remarkable toughness, even when subjected to extreme temperatures. It also offers excellent resistance to corrosion and stress-corrosion cracking, maintaining its integrity under high-stress conditions that would cause other materials to fail. This combination makes it a robust and durable choice.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

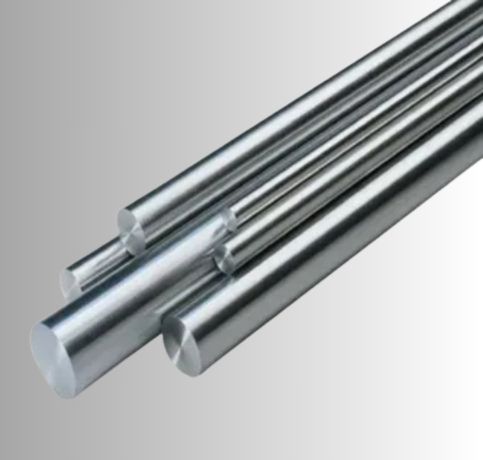

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |

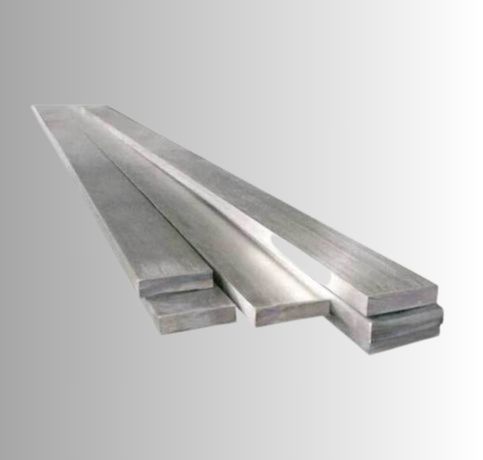

| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |
| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
The unique properties of Incoloy 925 bars and rods make them indispensable in fields where failure is not an option. They are extensively used in the oil and gas industry for components like downhole wellhead equipment and valve trims, where they withstand highly corrosive sour gas environments. Additionally, these bars are vital in chemical processing, marine engineering, and pollution control systems. Their reliability also extends to critical applications in pumps, shafts, and fasteners, ensuring long-lasting performance and safety in the toughest operational settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
